As a core device at the front end of the cold roll forming line, it is used to carry and unroll metal coils (such as SPCC, SPHC, SGCC, etc.). It provides stable tension through hydraulic or mechanical systems to ensure the coil is fed into the production line smoothly without slipping, wrinkling, or loosening, laying a foundation for subsequent leveling and forming processes.

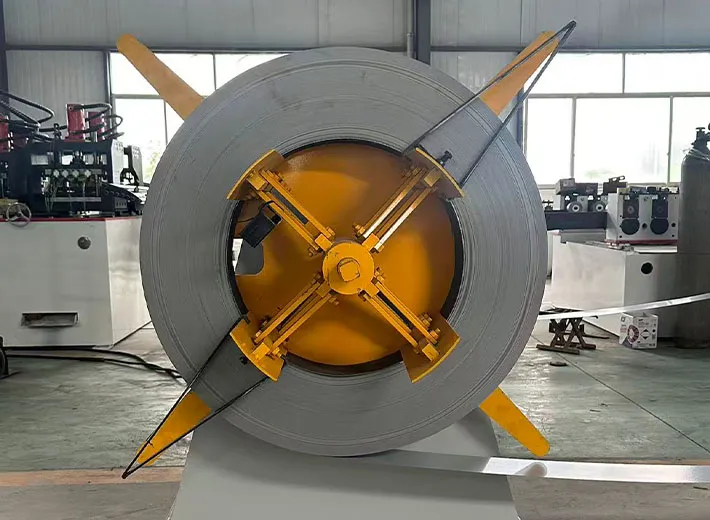

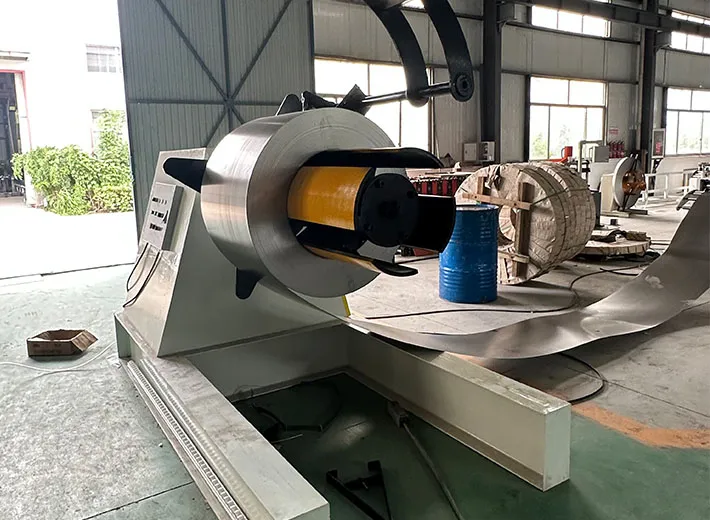

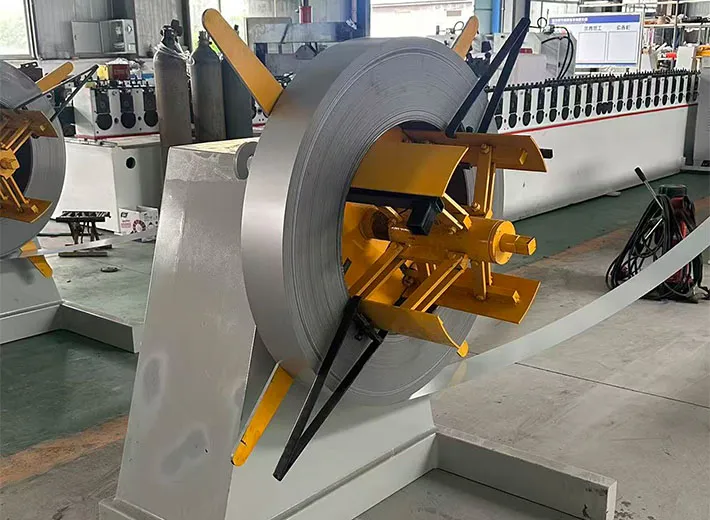

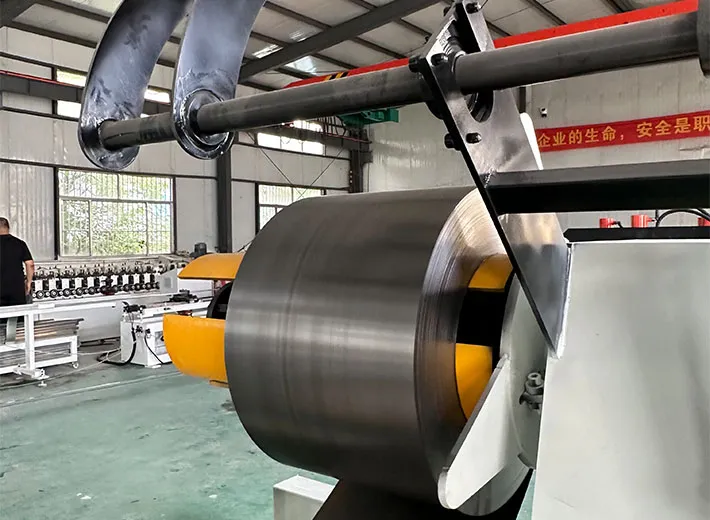

The Uncoiler is a core component positioned at the front end of a cold roll forming production line. Its primary function is to carry and unroll metal coils such as SPCC, SPHC, SGCC, SUS, and aluminum sheets, ensuring continuous and stable feeding for subsequent processing stages.
Using hydraulic or mechanical tension control, the uncoiler maintains precise tension during operation to prevent slipping, wrinkling, or material loosening. This stability ensures the coil is smoothly fed into the leveling and forming units, providing a solid foundation for high-quality and precise roll forming results.
Built with a heavy-duty structure, adjustable tension system, and high load-bearing capability, the uncoiler delivers consistent performance even under demanding production conditions. It integrates seamlessly with various forming lines, supporting efficient coil handling, operator safety, and long-term reliability in industrial manufacturing environments.
| Suitable raw material | Cold-rolled sheet (SPCC), hot-rolled sheet (SPHC), hot-dip galvanized sheet (SGCC), stainless steel sheet (SUS), aluminum sheet (AL), electro-galvanized sheet (SECC) (customized according to customer requirements) |
| Raw material width | 10mm-2000mm (customized according to customer requirements) |
| Rolling thinckness | 0.2-10mm(customized according to customer requirements) |
| Production Capacity | 0-50 m/min(customized according to customer requirements) |
| Servo Feeder | Yaskawa, Delta, etc., customized according to customer requirements |
| Machine motor power | 3kw-200kw, customized according to customer requirements; motor brands include Siemens, Yaskawa, etc., customized according to customer requirements |
| Voltage | 110v-380v, customized according to local voltage |
| Punching Machine Material | Cr12MoV, SKD11, DC53 die steel, customized according to raw material |
| Roller material | High-quality Cr12 die steel, processed by CNC lathe |
| Machine working speed | 0-50 m/min (customized according to customer requirements) |
| Electrical control system | Siemens, Mitsubishi, Schneider, etc., customized according to customer requirements |

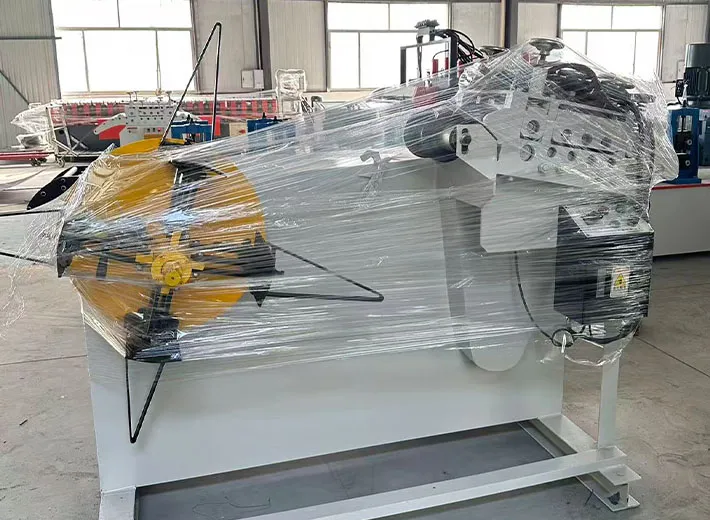

| Transport Package | Wrap with plastic wrap and pack in boxes stretch film packaging, fumigation-free wooden boxes, and fumigation-free wooden pallets |
| Customized service | Customization by Design Drawing Customization by Sample Customization to Your Requirements |
1.Stable Coil Feeding — Maintains constant tension through hydraulic or mechanical control systems, ensuring smooth and accurate material delivery.
2.High Load Capacity — Robust frame and reinforced spindle support heavy coils across different material types.
3.Automatic Synchronization — Real-time coordination with downstream forming units improves line efficiency and reduces manual adjustment.
4.Precision Operation — Smooth start-stop performance prevents slipping, wrinkling, or deformation during uncoiling.
5.Durable Construction — Heavy-duty steel frame and precision components enable long-term, vibration-free operation.
6.Energy Efficiency — Advanced motor control minimizes energy consumption while maintaining high output stability.
7.Easy Maintenance — Modular design allows quick access for inspection, servicing, and part replacement.
Central command for start/stop, speed sync, parameters, alarms, and safety.
Holds and unwinds coil with stable tension for smooth infeed.
Work rolls remove internal stress and correct flatness/straightness.
Fixed-length, accurate feeding at preset length and speed.
Punching, shearing, bending, flanging, and drawing via dies.
Multiple stands gradually bend strip into the target profile.
In-motion, synchronized cutting; clean, burr-free ends.
Convey, turn, and stack finished profiles for packing/transport.
