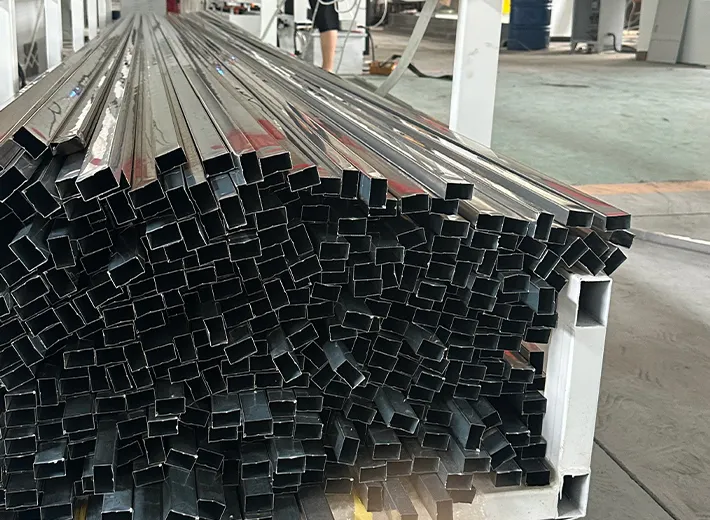

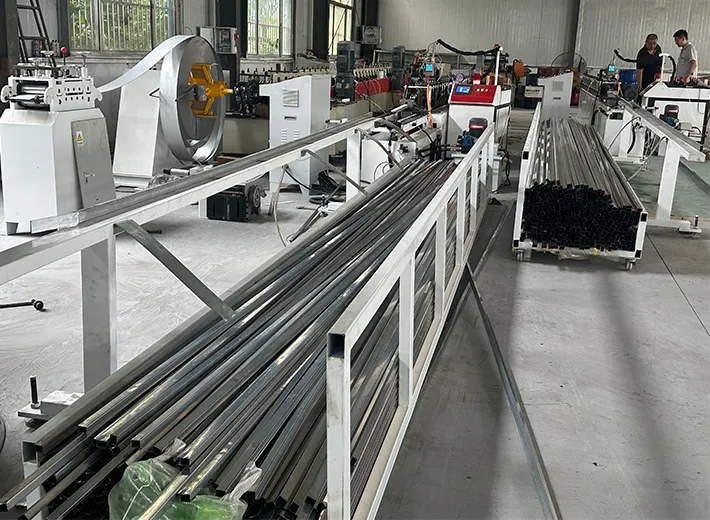

The terminal equipment of the cold roll forming line. The receiving table collects the cut finished profiles, while the palletizer arranges them neatly into stacks through conveying, flipping, and stacking actions. This automates the sorting and stacking process, reducing manual handling, ensuring the products are tidy and damage-free, and facilitating efficient packaging and transportation.
After precise cutting, keeping the finished profiles tidy and undamaged is essential. The Receiving Table serves as the first buffer zone, catching and guiding the products smoothly from the cut-off station.
The Palletizer section is tailored to the production requirements, capable of aligning and stacking profiles in a preset order or direction. Depending on the configuration, this process may involve simple conveying, elevation, or positioning functions. The actual stacking may be handled by operators based on the factory layout.
This system improves the organization of final products, simplifies the manual handling process, and creates better conditions for downstream packaging or movement.
| Suitable raw material | Cold-rolled sheet (SPCC), hot-rolled sheet (SPHC), hot-dip galvanized sheet (SGCC), stainless steel sheet (SUS), aluminum sheet (AL), electro-galvanized sheet (SECC) (customized according to customer requirements) |
| Raw material width | 10mm-2000mm (customized according to customer requirements) |
| Rolling thinckness | 0.2-10mm(customized according to customer requirements) |
| Production Capacity | 0-50 m/min(customized according to customer requirements) |
| Servo Feeder | Yaskawa, Delta, etc., customized according to customer requirements |
| Machine motor power | 3kw-200kw, customized according to customer requirements; motor brands include Siemens, Yaskawa, etc., customized according to customer requirements |
| Voltage | 110v-380v, customized according to local voltage |
| Punching Machine Material | Cr12MoV, SKD11, DC53 die steel, customized according to raw material |
| Roller material | High-quality Cr12 die steel, processed by CNC lathe |
| Machine working speed | 0-50 m/min (customized according to customer requirements) |
| Electrical control system | Siemens, Mitsubishi, Schneider, etc., customized according to customer requirements |
| Transport Package | Wrap with plastic wrap and pack in boxes stretch film packaging, fumigation-free wooden boxes, and fumigation-free wooden pallets |
| Customized service | Customization by Design Drawing Customization by Sample Customization to Your Requirements |
Central command for start/stop, speed sync, parameters, alarms, and safety.
Holds and unwinds coil with stable tension for smooth infeed.
Work rolls remove internal stress and correct flatness/straightness.
Fixed-length, accurate feeding at preset length and speed.
Punching, shearing, bending, flanging, and drawing via dies.
Multiple stands gradually bend strip into the target profile.
In-motion, synchronized cutting; clean, burr-free ends.
Convey, turn, and stack finished profiles for packing/transport.
We promise to deliver on time and formulate clear production and shipping plans for each batch of orders to ensure that the customer's internal project nodes are not delayed.
