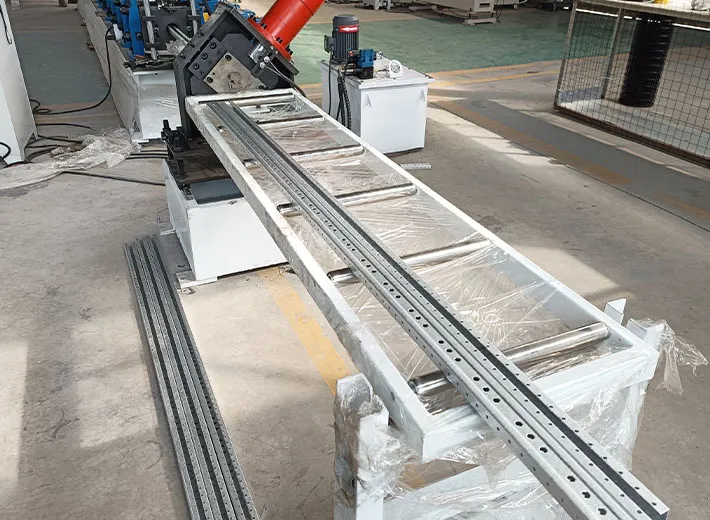

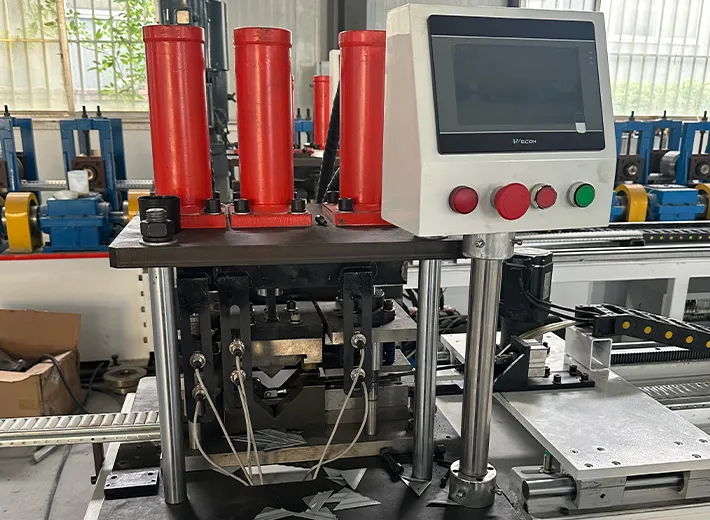

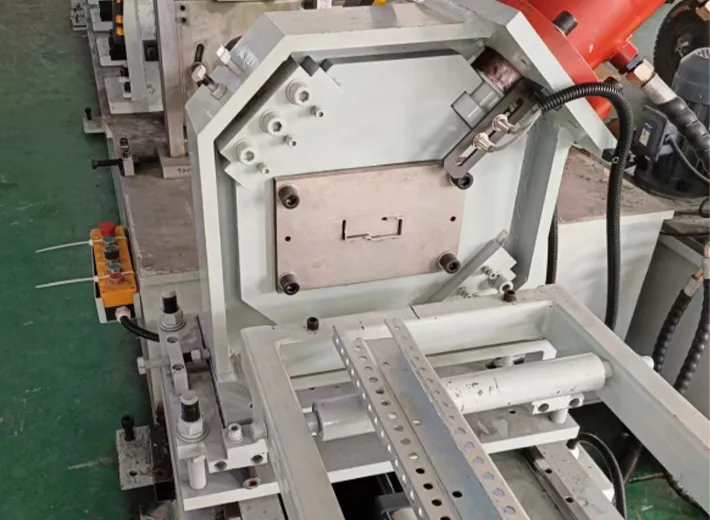

A key device for finishing in cold roll forming lines. It tracks and synchronizes with the continuously moving profiles, performing high-precision fixed-length cutting. Equipped with advanced servo tracking systems, it ensures flat, burr-free cuts even at high production speeds, guaranteeing consistent length accuracy of the finished profiles and facilitating subsequent stacking and packaging.
The Cutting Machine ensures that every finished profile leaves your production line with the exact length, clean edge, and ready-to-pack form expected in industrial fabrication. Designed for inline integration, the cutter uses a servo-synchronized tracking mechanism to move with the continuous material during cutting—preventing burrs, deformation, or misalignment.

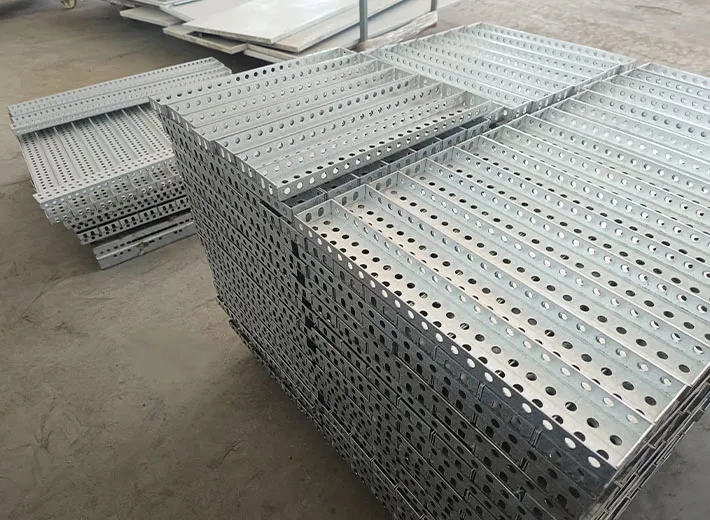

It is ideal for high-throughput environments and profile types such as:C/U channels,Steel railings and frames,Cable trays and safety panels,Enclosures and structural profiles
The system supports both flying cut and stop-cut modes depending on production setup. Paired with accurate PLC programming and robust servo drives, it ensures minimal scrap and maximum dimensional consistency.
| Suitable raw material | Cold-rolled sheet (SPCC), hot-rolled sheet (SPHC), hot-dip galvanized sheet (SGCC), stainless steel sheet (SUS), aluminum sheet (AL), electro-galvanized sheet (SECC) (customized according to customer requirements) |
| Raw material width | 10mm-2000mm (customized according to customer requirements) |
| Rolling thinckness | 0.2-10mm(customized according to customer requirements) |
| Production Capacity | 0-50 m/min(customized according to customer requirements) |
| Servo Feeder | Yaskawa, Delta, etc., customized according to customer requirements |
| Machine motor power | 3kw-200kw, customized according to customer requirements; motor brands include Siemens, Yaskawa, etc., customized according to customer requirements |
| Voltage | 110v-380v, customized according to local voltage |
| Punching Machine Material | Cr12MoV, SKD11, DC53 die steel, customized according to raw material |
| Roller material | High-quality Cr12 die steel, processed by CNC lathe |
| Machine working speed | 0-50 m/min (customized according to customer requirements) |
| Electrical control system | Siemens, Mitsubishi, Schneider, etc., customized according to customer requirements |
| Transport Package | Wrap with plastic wrap and pack in boxes stretch film packaging, fumigation-free wooden boxes, and fumigation-free wooden pallets |
| Customized service | Customization by Design Drawing Customization by Sample Customization to Your Requirements |
Central command for start/stop, speed sync, parameters, alarms, and safety.
Holds and unwinds coil with stable tension for smooth infeed.
Work rolls remove internal stress and correct flatness/straightness.
Fixed-length, accurate feeding at preset length and speed.
Punching, shearing, bending, flanging, and drawing via dies.
Multiple stands gradually bend strip into the target profile.
In-motion, synchronized cutting; clean, burr-free ends.
Convey, turn, and stack finished profiles for packing/transport.
