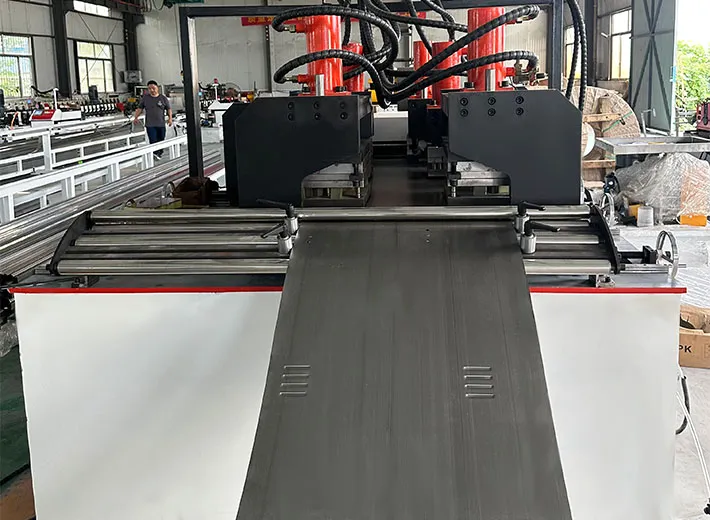

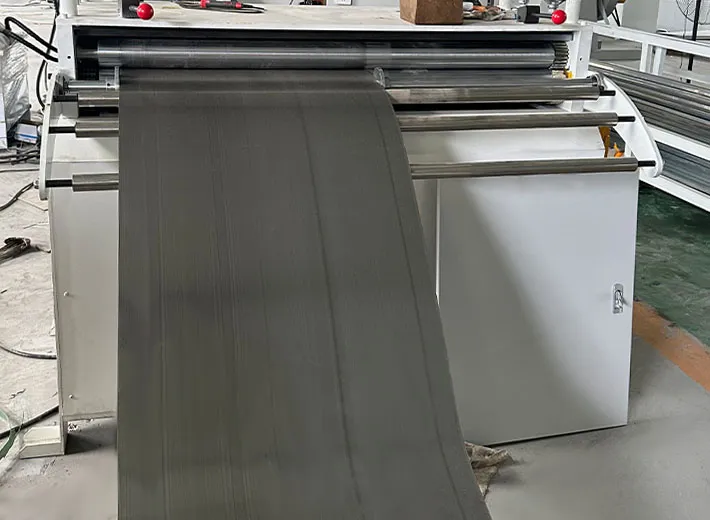

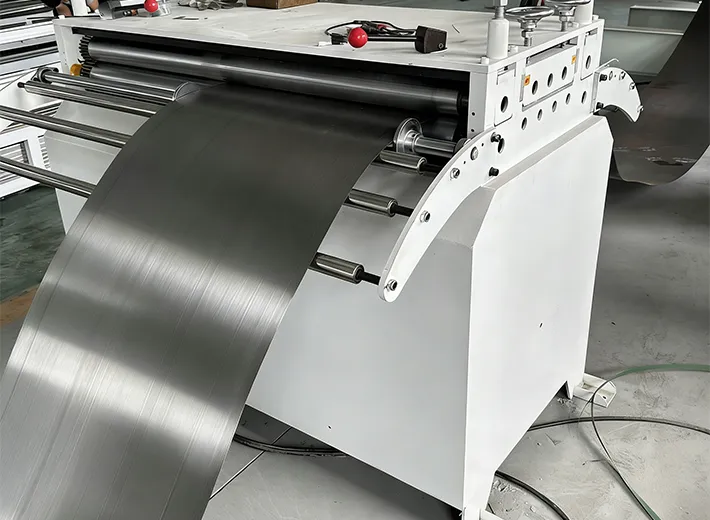

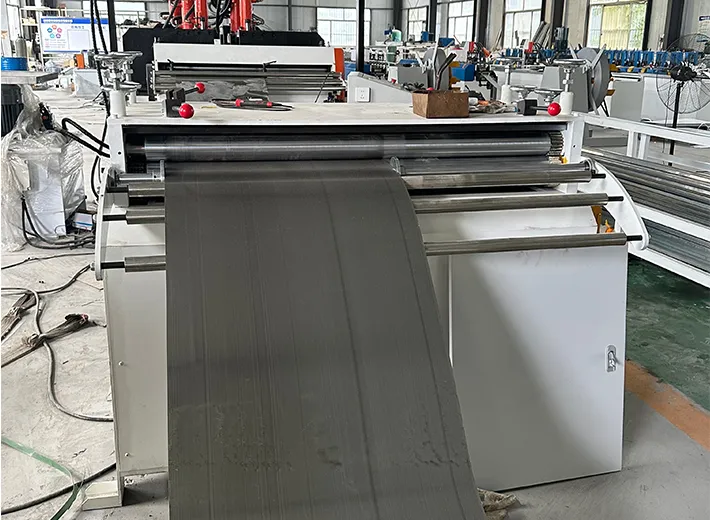

The Straightener is a precision device used after roll forming to fine-tune the flatness, linearity, and cross-sectional integrity of cold-formed profiles. By using multi-roller calibration, it eliminates residual stresses, slight twists, or bending distortions—ensuring every profile meets tight dimensional tolerances and application-specific accuracy standards.
In high-end cold roll forming lines, dimensional consistency does not end at forming—it continues with finishing. The Straightener is designed to correct minor deformations caused during forming, cutting, or thermal effects, especially in long or slender profiles.
Using multi-pass roller adjustment, it gradually corrects:Profile camber (horizontal bending),Bowing or wave (vertical distortion),Twist or torsion in open/closed sections
Ideal for applications where precise fit and installation quality are essential—such as structural systems, enclosures, support rails, and construction profiles.
This post-forming device improves not only product quality but also customer satisfaction, reducing the need for rework or field adjustments.
| Suitable raw material | Cold-rolled sheet (SPCC), hot-rolled sheet (SPHC), hot-dip galvanized sheet (SGCC), stainless steel sheet (SUS), aluminum sheet (AL), electro-galvanized sheet (SECC) (customized according to customer requirements) |
| Raw material width | 10mm-2000mm (customized according to customer requirements) |
| Rolling thinckness | 0.2-10mm(customized according to customer requirements) |
| Production Capacity | 0-50 m/min(customized according to customer requirements) |
| Servo Feeder | Yaskawa, Delta, etc., customized according to customer requirements |
| Machine motor power | 3kw-200kw, customized according to customer requirements; motor brands include Siemens, Yaskawa, etc., customized according to customer requirements |
| Voltage | 110v-380v, customized according to local voltage |
| Punching Machine Material | Cr12MoV, SKD11, DC53 die steel, customized according to raw material |
| Roller material | High-quality Cr12 die steel, processed by CNC lathe |
| Machine working speed | 0-50 m/min (customized according to customer requirements) |
| Electrical control system | Siemens, Mitsubishi, Schneider, etc., customized according to customer requirements |

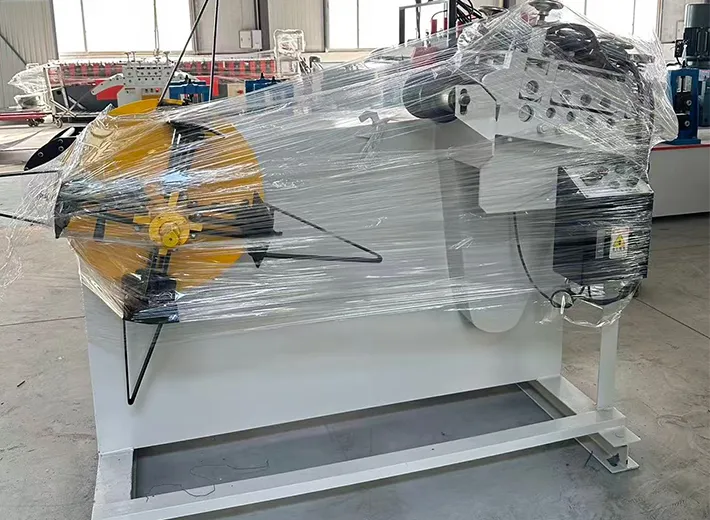

| Transport Package | Wrap with plastic wrap and pack in boxes stretch film packaging, fumigation-free wooden boxes, and fumigation-free wooden pallets |
| Customized service | Customization by Design Drawing Customization by Sample Customization to Your Requirements |
Post-Forming Correction—Eliminates profile distortions, wave, and twist for high linearity.
Multi-Roll Precision Design—Fine roller configuration allows for incremental and stable straightening.
Critical for Long Profiles—Ensures dimensional tolerance in products over 2–6 meters or more.
Reduces Manual Adjustment Needs—Improves on-site install accuracy, lowering downstream labor costs.
Supports Complex Sections—Works with open, closed, hollow, or reinforced profiles.
Integrated PLC Control—Allows fine-tuning of pressure, speed, and tension to match forming output.
Rugged, Low-Vibration Structure—Built for long operational cycles in industrial environments.
Smooth Line Integration—Connects seamlessly with forming, cutting, and packing stations.
Central command for start/stop, speed sync, parameters, alarms, and safety.
Holds and unwinds coil with stable tension for smooth infeed.
Work rolls remove internal stress and correct flatness/straightness.
Fixed-length, accurate feeding at preset length and speed.
Punching, shearing, bending, flanging, and drawing via dies.
Multiple stands gradually bend strip into the target profile.
In-motion, synchronized cutting; clean, burr-free ends.
Convey, turn, and stack finished profiles for packing/transport.
