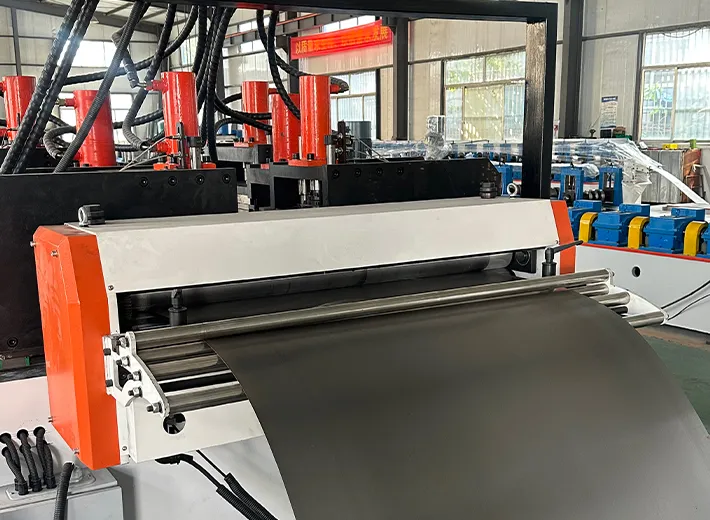

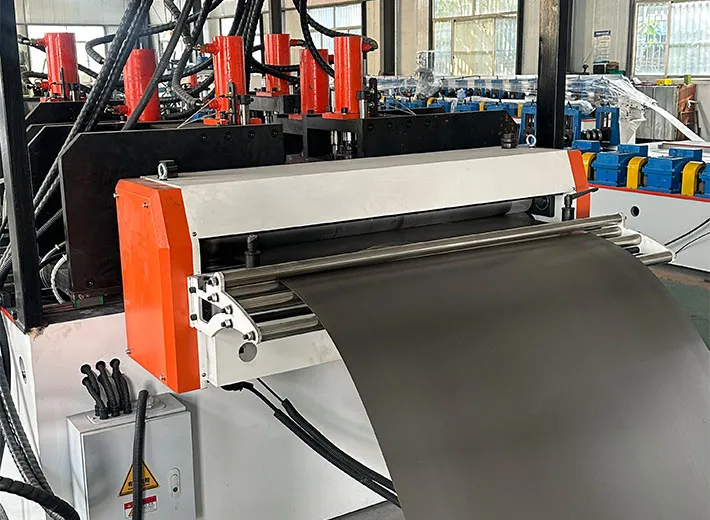

A high-precision feeding device tailored for cold roll forming lines. Equipped with a servo control system, it achieves accurate fixed-length feeding of metal strips. It precisely delivers materials to subsequent equipment (such as punching machines or forming hosts) according to preset lengths and speeds, ensuring consistency in processing dimensions during continuous production and adapting to high-speed and high-precision forming needs.
The Servo Feeder plays an essential role in ensuring repeatable feeding accuracy throughout automated production lines. It uses servo-driven motion control to perform exact strip positioning based on pre-programmed lengths and speeds, enabling full synchronization with punching presses, roll forming machines, and cutting systems.
Built to support cold-rolled, galvanized, stainless steel, and aluminum strips, the system can be tailored for various strip widths, thicknesses, and tension loads—making it ideal for both light-duty and heavy-duty applications.
Key industries using servo feeders include:Electrical Enclosures,Cabinet & Box Manufacturing,Fire Safety Systems,Photovoltaic Frames,Shelving & Storage Systems
The Servo Feeder helps manufacturers reduce waste, increase accuracy, and ensure non-stop production even under demanding, high-speed cycles.
| Suitable raw material | Cold-rolled sheet (SPCC), hot-rolled sheet (SPHC), hot-dip galvanized sheet (SGCC), stainless steel sheet (SUS), aluminum sheet (AL), electro-galvanized sheet (SECC) (customized according to customer requirements) |
| Raw material width | 10mm-2000mm (customized according to customer requirements) |
| Rolling thinckness | 0.2-10mm(customized according to customer requirements) |
| Production Capacity | 0-50 m/min(customized according to customer requirements) |
| Servo Feeder | Yaskawa, Delta, etc., customized according to customer requirements |
| Machine motor power | 3kw-200kw, customized according to customer requirements; motor brands include Siemens, Yaskawa, etc., customized according to customer requirements |
| Voltage | 110v-380v, customized according to local voltage |
| Punching Machine Material | Cr12MoV, SKD11, DC53 die steel, customized according to raw material |
| Roller material | High-quality Cr12 die steel, processed by CNC lathe |
| Machine working speed | 0-50 m/min (customized according to customer requirements) |
| Electrical control system | Siemens, Mitsubishi, Schneider, etc., customized according to customer requirements |
| Transport Package | Wrap with plastic wrap and pack in boxes stretch film packaging, fumigation-free wooden boxes, and fumigation-free wooden pallets |
| Customized service | Customization by Design Drawing Customization by Sample Customization to Your Requirements |
High Precision Servo Control—Delivers micron-level feeding accuracy to minimize scrap and ensure precise forming and punching alignment.
Fast Response & Acceleration—Supports rapid start/stop cycles, ideal for high-speed, multi-station cold forming lines.
Adaptive Feeding Logic—Adjusts feeding length and timing in real time based on downstream signal feedback.
Multi-Material Compatibility—Handles wide-ranging strip materials including galvanized, stainless, and aluminum sheets.
Heavy-Duty Roller System—Engineered with CNC-machined rollers for consistent performance and minimal deformation.
Easy Integration—Seamlessly connects with uncoilers, levelers, punch presses, and cutting machines.
Energy-Efficient Drive System—Optimized motion profiles reduce energy usage while maintaining output speed.
Operator-Friendly Design——Includes intuitive HMI interface and easy-access components for maintenance and fine-tuning.
Central command for start/stop, speed sync, parameters, alarms, and safety.
Holds and unwinds coil with stable tension for smooth infeed.
Work rolls remove internal stress and correct flatness/straightness.
Fixed-length, accurate feeding at preset length and speed.
Punching, shearing, bending, flanging, and drawing via dies.
Multiple stands gradually bend strip into the target profile.
In-motion, synchronized cutting; clean, burr-free ends.
Convey, turn, and stack finished profiles for packing/transport.
