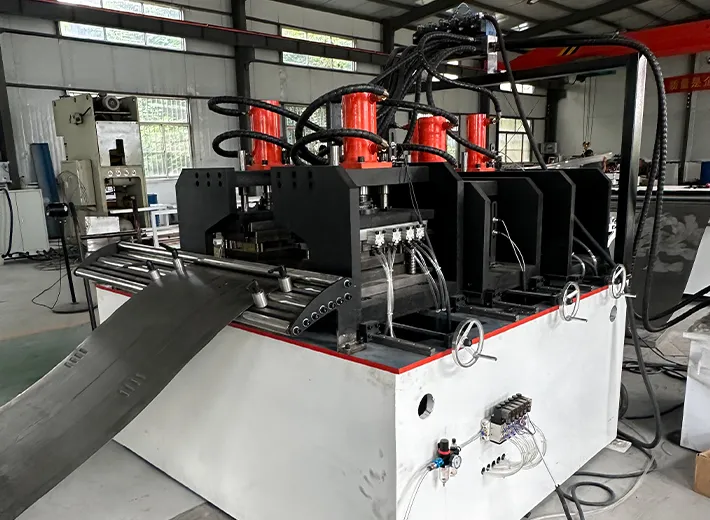

Also known as a press, it is an essential auxiliary processing device in cold roll forming lines. It applies high pressure to make metal sheets undergo plastic deformation or separation in dies, enabling processes such as punching, shearing, trimming, bending, flanging, and stretching on the strip or semi-formed profiles. This customizes holes, notches, or partial shapes for the product, matching the design requirements of the cold-formed profiles.

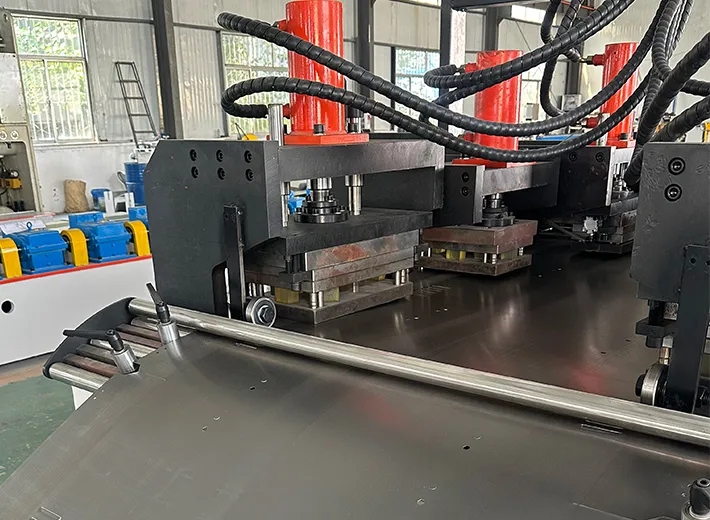

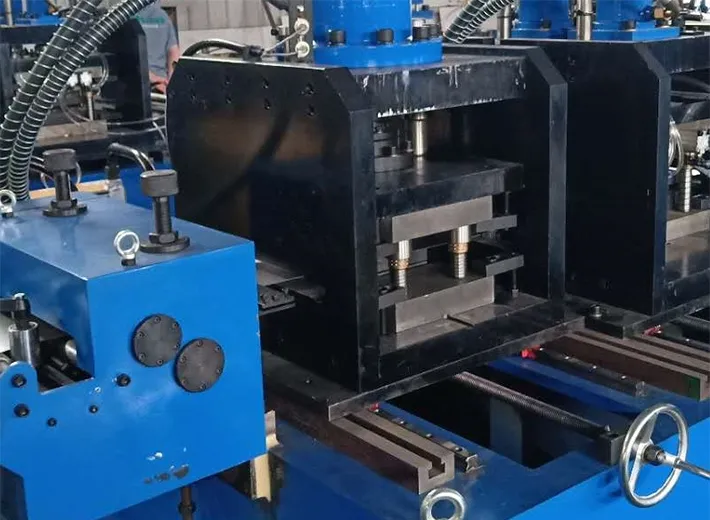

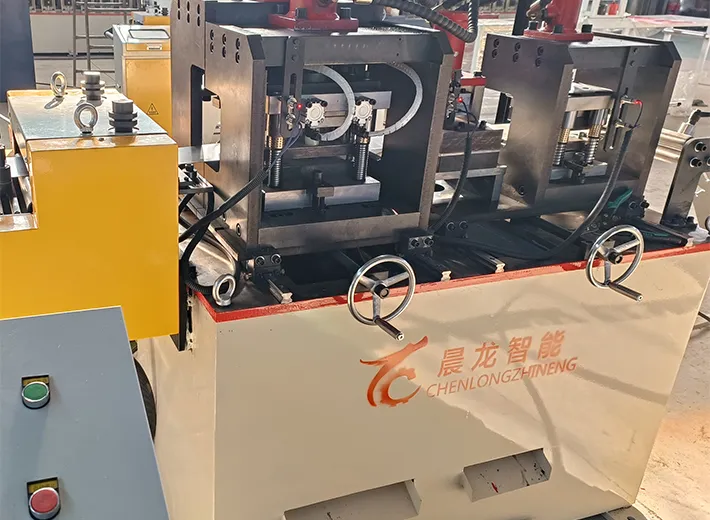

The Punching Machine provides critical deformation and shaping functions between the material feeding and roll forming stages. Utilizing matched die sets and high-speed servo control, it applies vertical force to punch or shear the metal sheet accurately before it enters the next process.
This machine supports a wide array of operations:Hole punching (round, oval, custom),Side or corner notching,Pre-form trimming or cutting,Flanging, coining, and shallow drawing
It ensures that every profile or product leaving the line meets precise hole placement and cut-out dimensions, reducing secondary processing and improving yield.

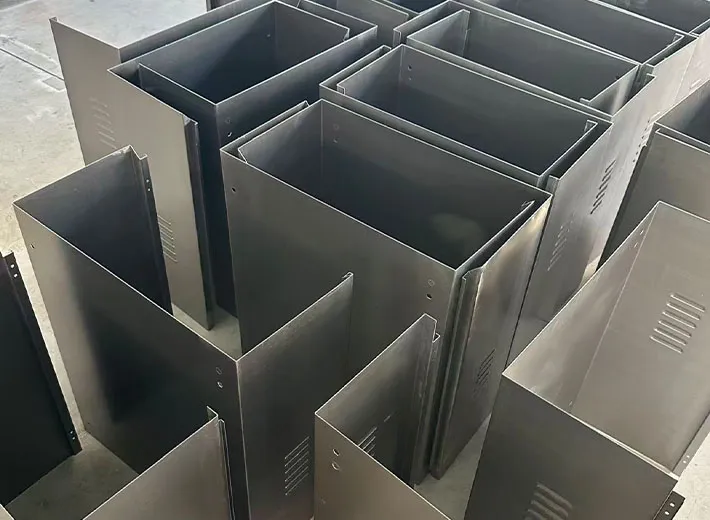

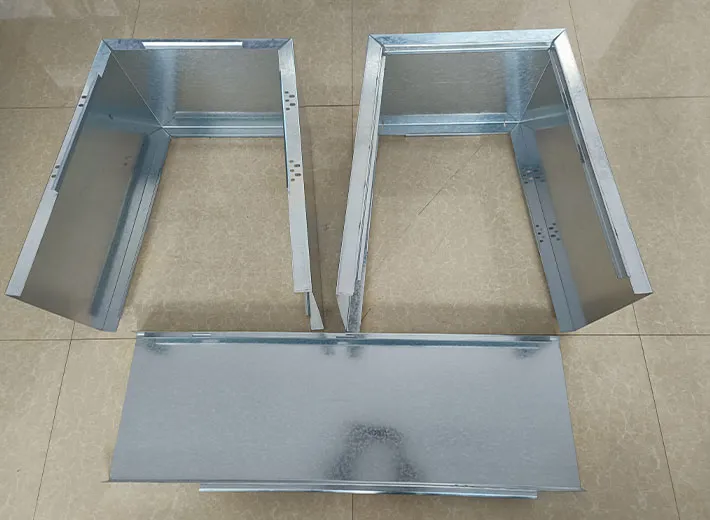

Industries relying on this solution include:Electrical cabinet production,Fire safety enclosures,PV frames and support structures,Warehouse & logistics shelving,Automotive body parts & floors
| Suitable raw material | Cold-rolled sheet (SPCC), hot-rolled sheet (SPHC), hot-dip galvanized sheet (SGCC), stainless steel sheet (SUS), aluminum sheet (AL), electro-galvanized sheet (SECC) (customized according to customer requirements) |
| Raw material width | 10mm-2000mm (customized according to customer requirements) |
| Rolling thinckness | 0.2-10mm(customized according to customer requirements) |
| Production Capacity | 0-50 m/min(customized according to customer requirements) |
| Servo Feeder | Yaskawa, Delta, etc., customized according to customer requirements |
| Machine motor power | 3kw-200kw, customized according to customer requirements; motor brands include Siemens, Yaskawa, etc., customized according to customer requirements |
| Voltage | 110v-380v, customized according to local voltage |
| Punching Machine Material | Cr12MoV, SKD11, DC53 die steel, customized according to raw material |
| Roller material | High-quality Cr12 die steel, processed by CNC lathe |
| Machine working speed | 0-50 m/min (customized according to customer requirements) |
| Electrical control system | Siemens, Mitsubishi, Schneider, etc., customized according to customer requirements |
| Transport Package | Wrap with plastic wrap and pack in boxes stretch film packaging, fumigation-free wooden boxes, and fumigation-free wooden pallets |
| Customized service | Customization by Design Drawing Customization by Sample Customization to Your Requirements |
High-Precision Punching—Customizable dies ensure accurate punching positions for complex patterns and shapes.
Multi-Function Capability—Supports notching, shearing, trimming, bending, and light-forming in a single station.
Servo-Driven Synchronization—Perfect alignment with feeder and roll forming systems for continuous, real-time control.
Durable Die System—High-grade tool steels (Cr12MoV, SKD11, DC53) ensure long service life and repeatable accuracy.
Material Versatility—Compatible with galvanized steel, stainless steel, aluminum, and other coil types.
Quick Die Change Option—Supports modular die changeouts to adapt to different profile designs with minimal downtime.
Compact & Rigid Frame Structure—Stable operation at high loads with reduced vibration and noise.
Seamless Line Integration—Can be configured for inline use with uncoiler, leveler, and forming machines.
Central command for start/stop, speed sync, parameters, alarms, and safety.
Holds and unwinds coil with stable tension for smooth infeed.
Work rolls remove internal stress and correct flatness/straightness.
Fixed-length, accurate feeding at preset length and speed.
Punching, shearing, bending, flanging, and drawing via dies.
Multiple stands gradually bend strip into the target profile.
In-motion, synchronized cutting; clean, burr-free ends.
Convey, turn, and stack finished profiles for packing/transport.
