This equipment can be customized to produce cable tray manufacturing machinery according to customer requirements, enabling automated cable tray production and significantly boosting production efficiency.
Chenlong Intelligent has long been dedicated to the development and manufacturing of various automatic cable tray forming machines, possessing extensive design and manufacturing expertise as a specialized producer of cable tray equipment. This production line is dedicated equipment for manufacturing one-step formed cable trays, featuring servo feeding and in-line punching. The main unit adopts a modular adjustable design, eliminating the need for roller replacement—a single set of rollers can complete the rolling of any specification of cable tray profiles.
| Suitable raw material | Cold-rolled sheet (SPCC), hot-rolled sheet (SPHC), hot-dip galvanized sheet (SGCC), stainless steel sheet (SUS), aluminum sheet (AL), electro-galvanized sheet (SECC) (customized according to customer requirements) |
| Raw material width | 10mm-2000mm (customized according to customer requirements) |
| Rolling thinckness | 0.2-10mm(customized according to customer requirements) |
| Production Capacity | 0-50 m/min(customized according to customer requirements) |
| Servo Feeder | Yaskawa, Delta, etc., customized according to customer requirements |
| Machine motor power | 3kw-200kw, customized according to customer requirements; motor brands include Siemens, Yaskawa, etc., customized according to customer requirements |
| Voltage | 110v-380v, customized according to local voltage |
| Punching Machine Material | Cr12MoV, SKD11, DC53 die steel, customized according to raw material |
| Roller material | High-quality Cr12 die steel, processed by CNC lathe |
| Machine working speed | 0-50 m/min (customized according to customer requirements) |
| Electrical control system | Siemens, Mitsubishi, Schneider, etc., customized according to customer requirements |
| Transport Package | Wrap with plastic wrap and pack in boxes stretch film packaging, fumigation-free wooden boxes, and fumigation-free wooden pallets |
| Customized service | Customization by Design Drawing Customization by Sample Customization to Your Requirements |
Central command for start/stop, speed sync, parameters, alarms, and safety.
Holds and unwinds coil with stable tension for smooth infeed.
Work rolls remove internal stress and correct flatness/straightness.
Fixed-length, accurate feeding at preset length and speed.
Punching, shearing, bending, flanging, and drawing via dies.

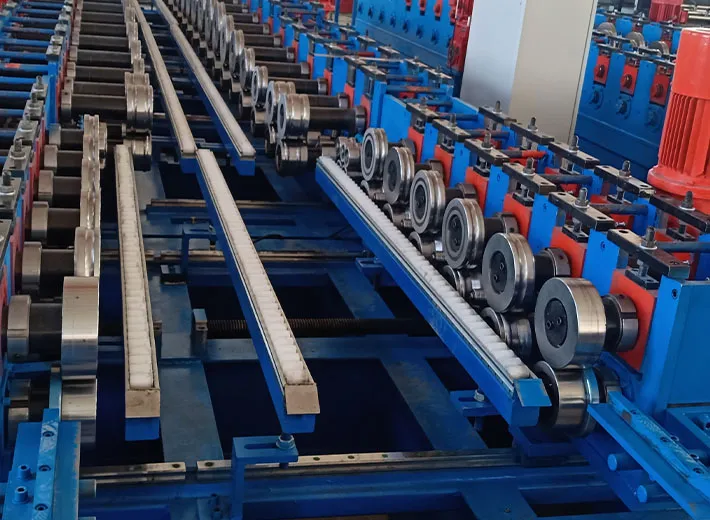

Multiple stands gradually bend strip into the target profile.
In-motion, synchronized cutting; clean, burr-free ends.
Convey, turn, and stack finished profiles for packing/transport.

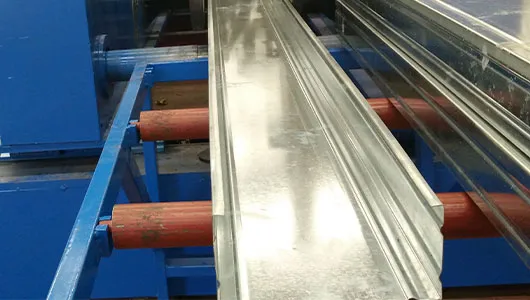

Integrated cold-forming unit and fixed-length cutting ensure consistent quality and dimensional accuracy across all components.
High rigidity and vibration damping keep roll alignment stable and extend the service life of the forming frame.

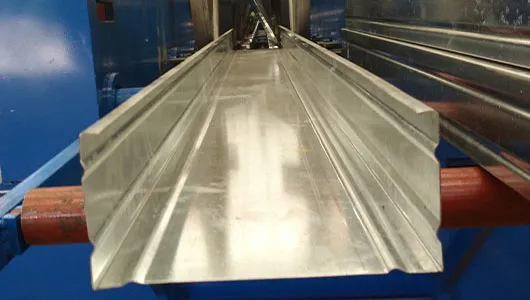

Smooth and obstruction-free material output ensures continuous production flow while reducing residue buildup and cleaning time.
We promise to deliver on time and formulate clear production and shipping plans for each batch of orders to ensure that the customer's internal project nodes are not delayed.
