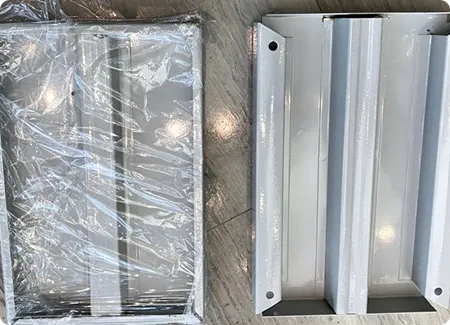

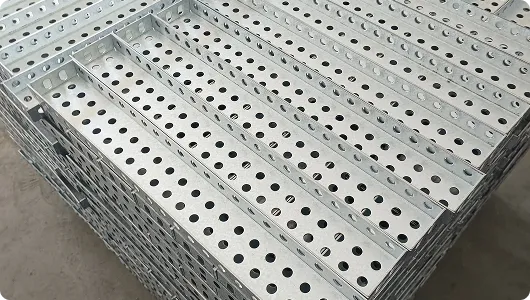

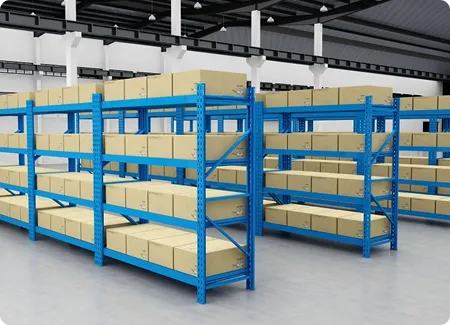

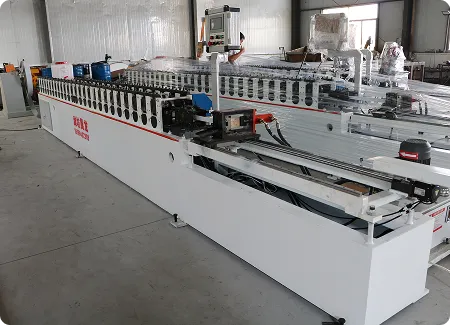

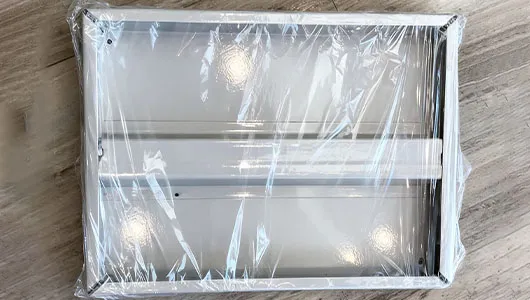

This equipment can produce shelf decks and uprights in various materials and dimensions to meet different customer requirements. After assembly, they form complete shelving units.
The core advantages of automatic forming equipment for warehouse shelves include: greatly improving production efficiency, realizing automated mass production, breaking the limit of manual fatigue threshold, shortening the production cycle, and increasing the order delivery rate; significantly reducing labor costs, reducing the risk of safety accidents, and lowering the enterprise’s safety protection costs; ensuring product quality and reliability, realizing “zero-error control” in the production process through high-precision numerical control systems, improving product qualification rate with the help of online detection systems, and extending the service life of shelves.
| Suitable raw material | Cold-rolled sheet (SPCC), hot-rolled sheet (SPHC), hot-dip galvanized sheet (SGCC), stainless steel sheet (SUS), aluminum sheet (AL), electro-galvanized sheet (SECC) (customized according to customer requirements) |
| Raw material width | 10mm-2000mm (customized according to customer requirements) |
| Rolling thinckness | 0.2-10mm(customized according to customer requirements) |
| Production Capacity | 0-50 m/min(customized according to customer requirements) |
| Servo Feeder | Yaskawa, Delta, etc., customized according to customer requirements |
| Machine motor power | 3kw-200kw, customized according to customer requirements; motor brands include Siemens, Yaskawa, etc., customized according to customer requirements |
| Voltage | 110v-380v, customized according to local voltage |
| Punching Machine Material | Cr12MoV, SKD11, DC53 die steel, customized according to raw material |
| Roller material | High-quality Cr12 die steel, processed by CNC lathe |
| Machine working speed | 0-50 m/min (customized according to customer requirements) |
| Electrical control system | Siemens, Mitsubishi, Schneider, etc., customized according to customer requirements |
| Transport Package | Wrap with plastic wrap and pack in boxes stretch film packaging, fumigation-free wooden boxes, and fumigation-free wooden pallets |
| Customized service | Customization by Design Drawing Customization by Sample Customization to Your Requirements |
1.Unit rolling capacity: Width ≤400mm, sheet thickness 1-2.5mm
2.Production speed: 0-15 meters/minute

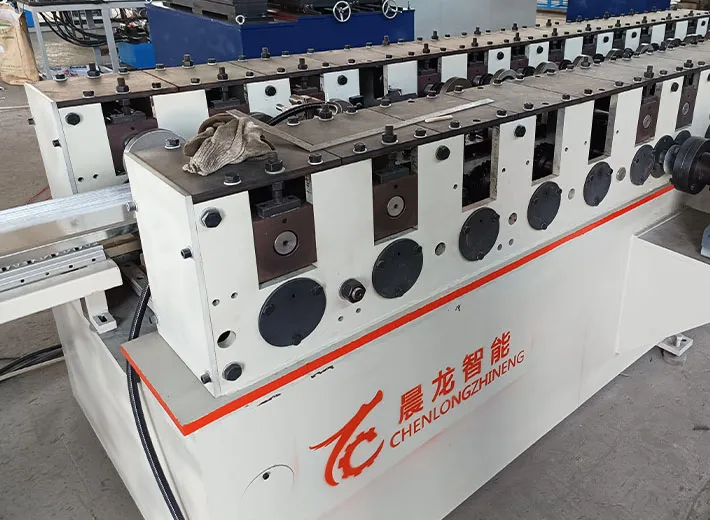

3.Forming Main Unit:
4.Type: Gearbox transmission or cantilever-type with adjustable width
5.Frame Structure: Cast iron portal gantry frame
6.Transmission: Independent gear distribution box per pass
7.Roll Material: GCr15, quenched and tempered, hardness HRC 58-62º
Central command for start/stop, speed sync, parameters, alarms, and safety.
Holds and unwinds coil with stable tension for smooth infeed.
Work rolls remove internal stress and correct flatness/straightness.
Fixed-length, accurate feeding at preset length and speed.
Punching, shearing, bending, flanging, and drawing via dies.

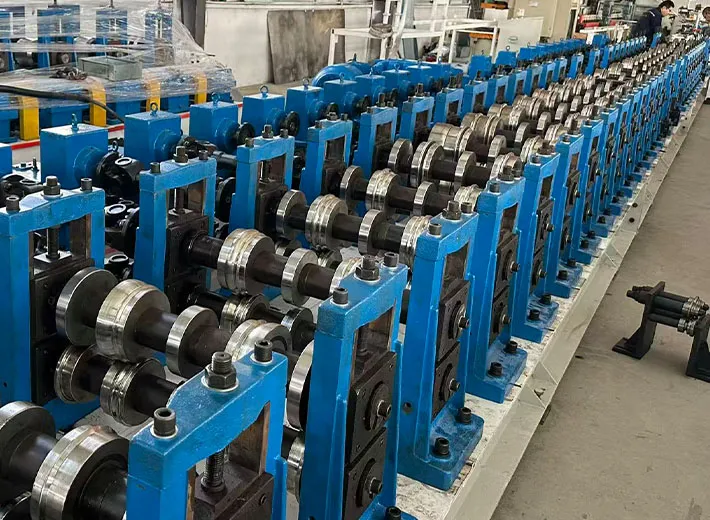

Multiple stands gradually bend strip into the target profile.

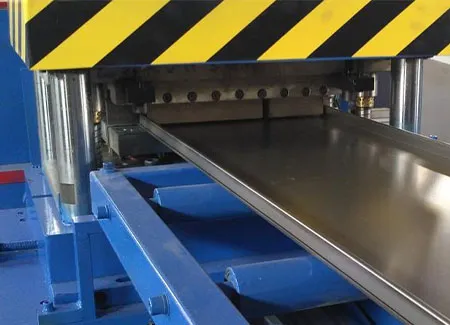

In-motion, synchronized cutting; clean, burr-free ends.

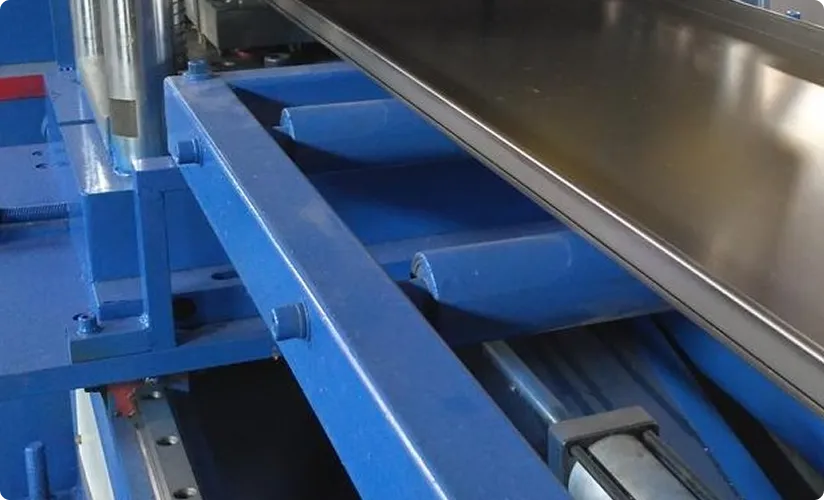

Convey, turn, and stack finished profiles for packing/transport.
CNC control ensures ±0.1mm dimensional accuracy

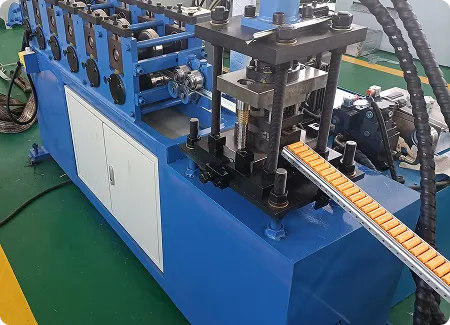

Punching, forming, cutting in one continuous process
Supports various upright sizes without major tooling changes
We promise to deliver on time and formulate clear production and shipping plans for each batch of orders to ensure that the customer's internal project nodes are not delayed.
