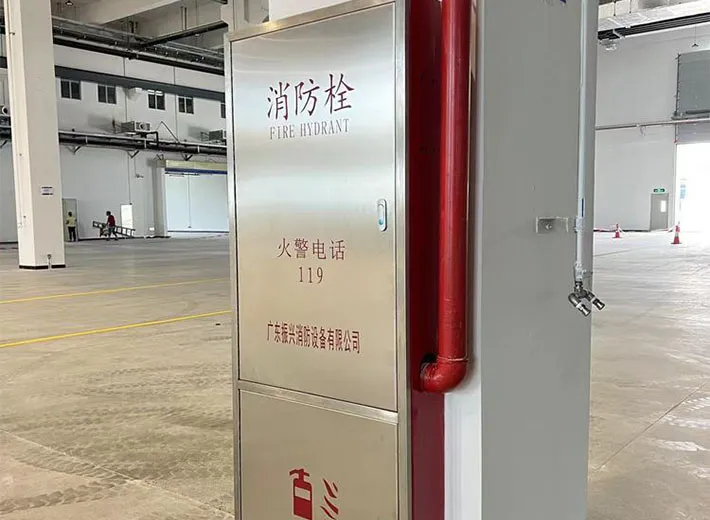

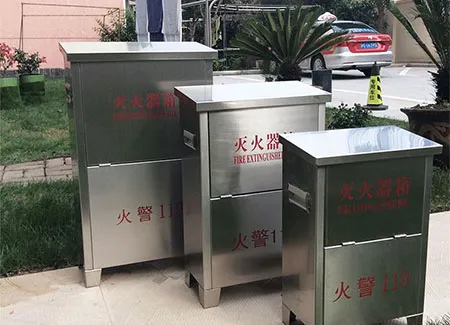

This equipment can produce various enclosure-type devices according to customer requirements, such as power distribution cabinets, fire protection cabinets, charging station protective enclosures, and more, offering versatile applications.

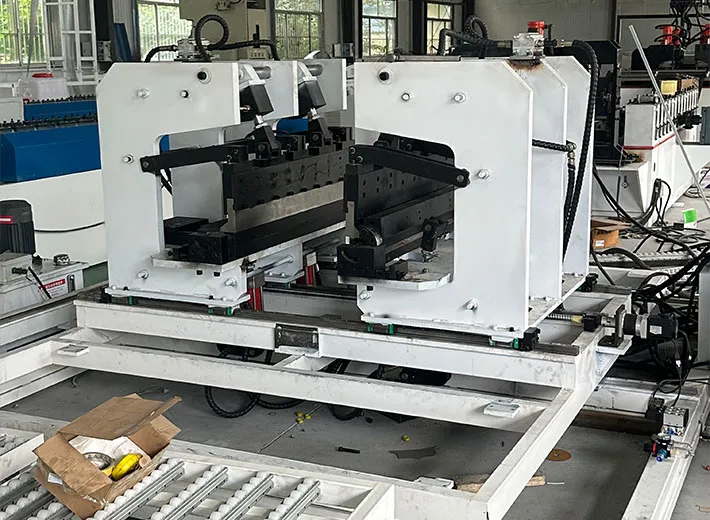

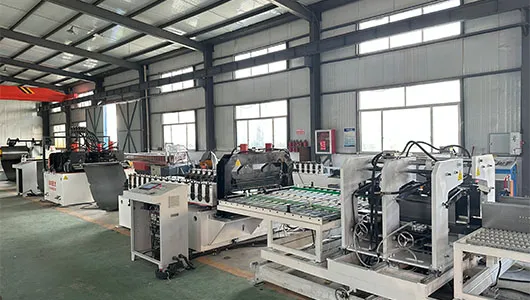

The fire box production line equipment occupies approximately 40 square meters. The forming equipment of the fire box production line primarily consists of: uncoiling equipment, leveling equipment, automatic feeding equipment, continuous punching equipment, high-precision cold-forming main unit, fixed-length cutting equipment, automatic frame-bending equipment, and electrical control systems. Key functions include: automatic corner removal, servo-driven automatic punching, automatic blanking, automatic forming, and automatic frame bending.
| Suitable raw material | Cold-rolled sheet (SPCC), hot-rolled sheet (SPHC), hot-dip galvanized sheet (SGCC), stainless steel sheet (SUS), aluminum sheet (AL), electro-galvanized sheet (SECC) (customized according to customer requirements) |
| Raw material width | 10mm-2000mm (customized according to customer requirements) |
| Rolling thinckness | 0.2-10mm(customized according to customer requirements) |
| Production Capacity | 0-50 m/min(customized according to customer requirements) |
| Servo Feeder | Yaskawa, Delta, etc., customized according to customer requirements |
| Machine motor power | 3kw-200kw, customized according to customer requirements; motor brands include Siemens, Yaskawa, etc., customized according to customer requirements |
| Voltage | 110v-380v, customized according to local voltage |
| Punching Machine Material | Cr12MoV, SKD11, DC53 die steel, customized according to raw material |
| Roller material | High-quality Cr12 die steel, processed by CNC lathe |
| Machine working speed | 0-50 m/min (customized according to customer requirements) |
| Electrical control system | Siemens, Mitsubishi, Schneider, etc., customized according to customer requirements |
| Transport Package | Wrap with plastic wrap and pack in boxes stretch film packaging, fumigation-free wooden boxes, and fumigation-free wooden pallets |
| Customized service | Customization by Design Drawing Customization by Sample Customization to Your Requirements |
1.Material Standard: Q235 (steel coil)
2.Steel Strip Thickness: 0.5~2.0mm
3.Production Speed: 120 enclosures/hour
4.Total Motor Power: 22kW
5.Cutting Method: Hydraulic cutting
6.Electrical Control: PLC fully automated control
7.Drive Motor: Variable frequency motor drive
8.Cutting Dimension Tolerance: ≤±0.5mm (Length ≤3000mm)
9.Cutting Die Material: Cr12MoV
10.Roll Material: Cr12 quenched HRC58°–62°
Central command for start/stop, speed sync, parameters, alarms, and safety.
Holds and unwinds coil with stable tension for smooth infeed.
Work rolls remove internal stress and correct flatness/straightness.

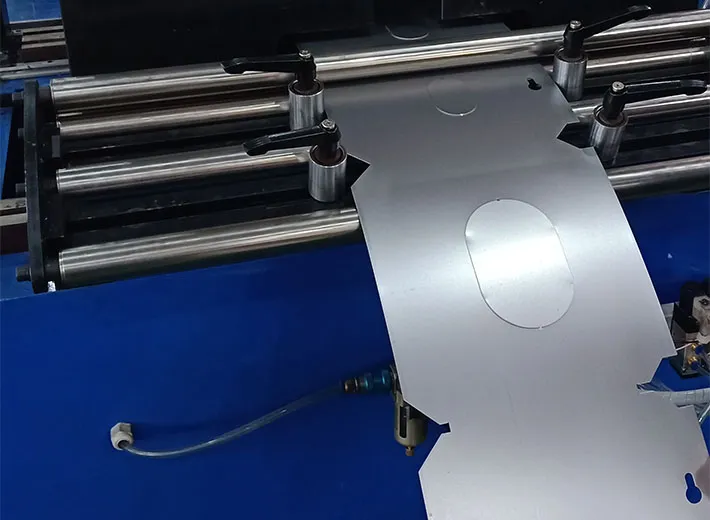

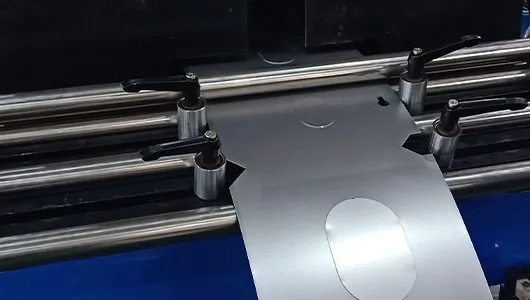

Fixed-length, accurate feeding at preset length and speed.
Punching, shearing, bending, flanging, and drawing via dies.

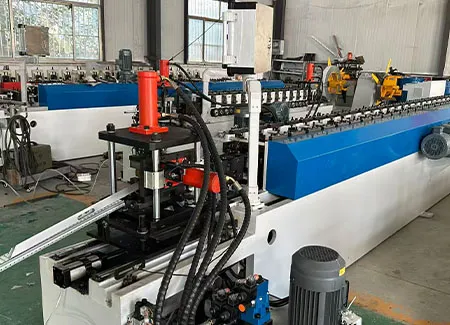

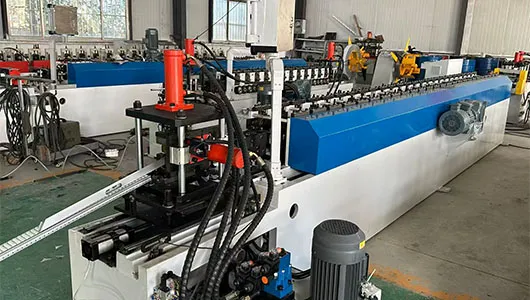

Multiple stands gradually bend strip into the target profile.
In-motion, synchronized cutting; clean, burr-free ends.
Convey, turn, and stack finished profiles for packing/transport.
Occupies only 40㎡, making it ideal for space-constrained workshops while maintaining full functionality.
From servo-driven punching to automatic frame bending, the system ensures continuous, hands-free production with minimal labor input.
Integrated cold-forming unit and fixed-length cutting ensure consistent quality and dimensional accuracy across all components.
