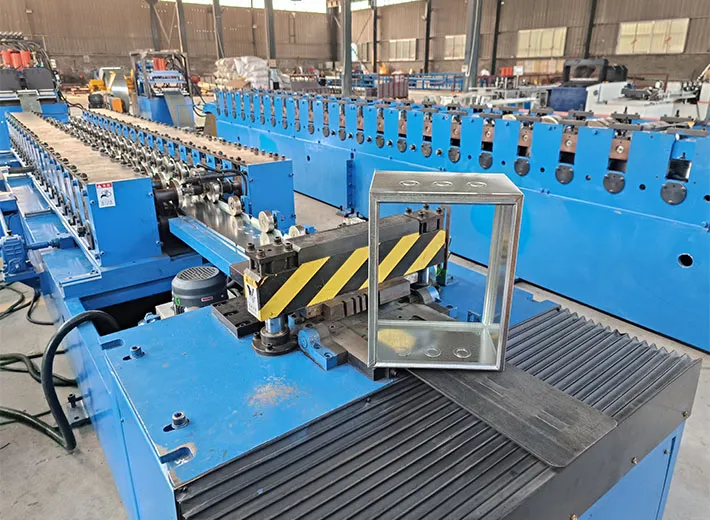

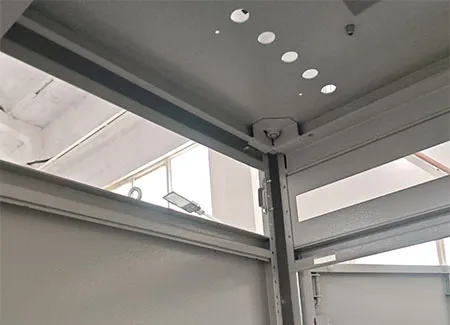

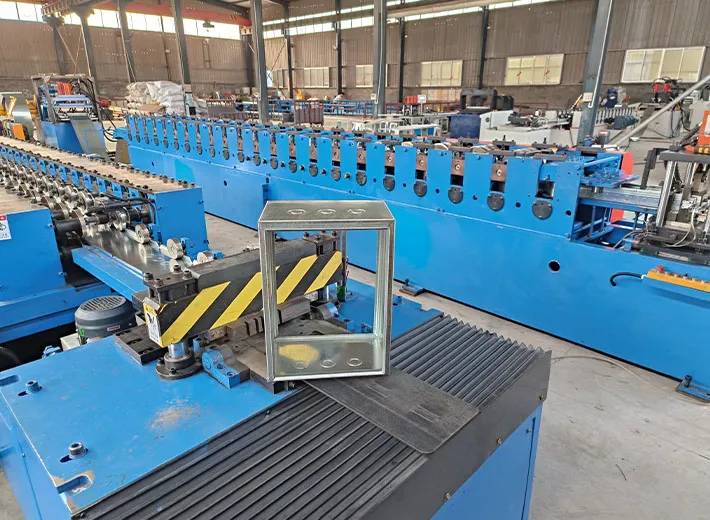

This equipment can produce various enclosure-type devices according to customer requirements, such as power distribution cabinets, fire protection cabinets, charging station protective enclosures, and more, offering versatile applications.
We supply specialized production lines designed for electrical component manufacturing:

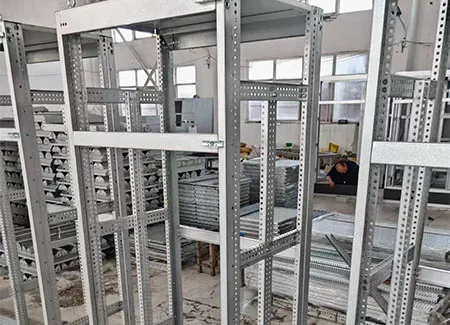

1.Enclosure & Frame Lines: Distribution cabinet or “KY” box shell forming lines that automate decoiling, forming, punching, and cutting for standard and custom-sized enclosures; switchgear frame forming lines for producing load-bearing C/U-section skeletons and door frames.
2.Cable Support Lines: Cable tray forming lines for manufacturing trough, tray, and ladder-type cable trays with covers; cable bracket forming lines that produce C/U-section brackets and arms, with adjustable lengths and thicknesses.
3.Protection & Wiring Lines: Electrical guardrail forming lines for safety barriers; metal trunking and junction box forming lines for building electrical wiring systems.
| Suitable raw material | Cold-rolled sheet (SPCC), hot-rolled sheet (SPHC), hot-dip galvanized sheet (SGCC), stainless steel sheet (SUS), aluminum sheet (AL), electro-galvanized sheet (SECC) (customized according to customer requirements) |
| Raw material width | 10mm-2000mm (customized according to customer requirements) |
| Rolling thinckness | 0.2-10mm(customized according to customer requirements) |
| Production Capacity | 0-50 m/min(customized according to customer requirements) |
| Servo Feeder | Yaskawa, Delta, etc., customized according to customer requirements |
| Machine motor power | 3kw-200kw, customized according to customer requirements; motor brands include Siemens, Yaskawa, etc., customized according to customer requirements |
| Voltage | 110v-380v, customized according to local voltage |
| Punching Machine Material | Cr12MoV, SKD11, DC53 die steel, customized according to raw material |
| Roller material | High-quality Cr12 die steel, processed by CNC lathe |
| Machine working speed | 0-50 m/min (customized according to customer requirements) |
| Electrical control system | Siemens, Mitsubishi, Schneider, etc., customized according to customer requirements |
| Transport Package | Wrap with plastic wrap and pack in boxes stretch film packaging, fumigation-free wooden boxes, and fumigation-free wooden pallets |
| Customized service | Customization by Design Drawing Customization by Sample Customization to Your Requirements |
1.Material Standard: Q235 (steel coil)
2.Steel Strip Thickness: 0.5~2.0mm
3.Production Speed: 120 enclosures/hour
4.Total Motor Power: 22kW
5.Cutting Method: Hydraulic cutting
6.Electrical Control: PLC fully automated control
7.Drive Motor: Variable frequency motor drive
8.Cutting Dimension Tolerance: ≤±0.5mm (Length ≤3000mm)
9.Cutting Die Material: Cr12MoV
10.Roll Material: Cr12 quenched HRC58°–62°

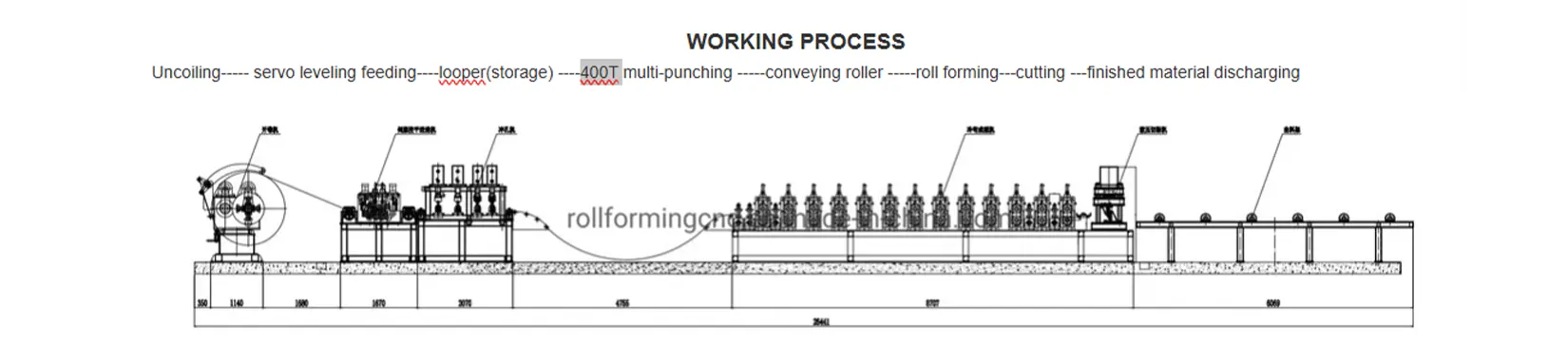

Central command for start/stop, speed sync, parameters, alarms, and safety.
Holds and unwinds coil with stable tension for smooth infeed.
Work rolls remove internal stress and correct flatness/straightness.
Fixed-length, accurate feeding at preset length and speed.
Punching, shearing, bending, flanging, and drawing via dies.

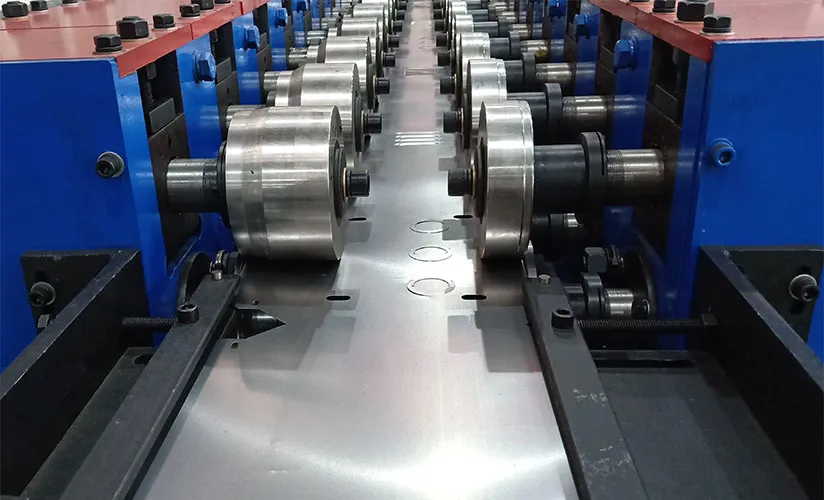

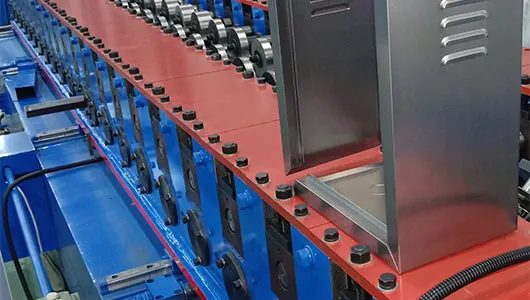

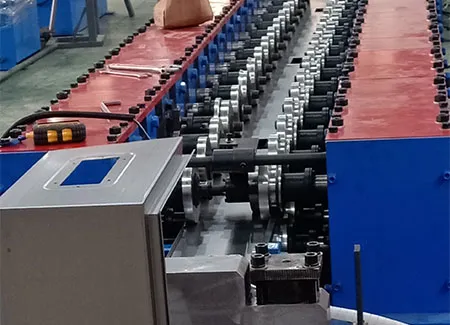

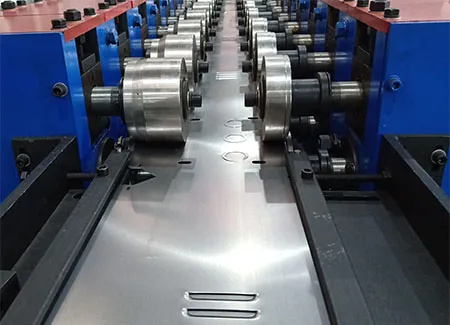

Multiple stands gradually bend strip into the target profile.
In-motion, synchronized cutting; clean, burr-free ends.
Convey, turn, and stack finished profiles for packing/transport.
Strict quality control ensures durability, stability, and long service life.
Expert team provides quick support from setup to operation
Direct from factory with fast delivery and full OEM/ODM options.
